ggrepel

Adam M. Wilson

Lead Author: Kamil Slowikowski

  • computational biologist
    • analysis of functional genomics data
    • cell regulation of functions in disease
  • software tools for statistical tests and data visualization
  • Postdoc at Harvard
  • Last paper in PNAS titled CUX1 and IκBζ (NFKBIZ) mediate the synergistic inflammatory response to TNF and IL-17A in stromal fibroblasts

ggrepel

geoms for ggplot2 to repel overlapping text labels

Text labels repel away from each other, away from data points, and away from edges of the plotting area.

Two main functions:

  • geom_text_repel()
  • geom_label_repel()

Compare geom_text() and geom_text_repel()

p <- ggplot(dat, aes(wt, mpg, label = car)) +
  geom_point(color = "red")

p1 <- p +
  geom_text() +
  labs(title = "geom_text()")

p2 <- p +
  geom_text_repel() +
  labs(title = "geom_text_repel()")

gridExtra::grid.arrange(p1, p2, ncol = 2)

Comparison

Options

ggrepel provides additional options for geom_text_repel and geom_label_repel:

Option Description
force force of repulsion between overlapping text labels
direction move text labels “both” (default), “x”, or “y” directions
max.iter maximum number of iterations to try to resolve overlaps
nudge_x adjust the starting x position of the text label
nudge_y adjust the starting y position of the text label
segment.color line segment color
segment.size line segment thickness
segment.curvature numeric, negative for left-hand and positive for right-hand curves, 0 for straight lines
segment.angle 0-180, less than 90 skews control points toward the start point
arrow render line segment as an arrow with grid::arrow()

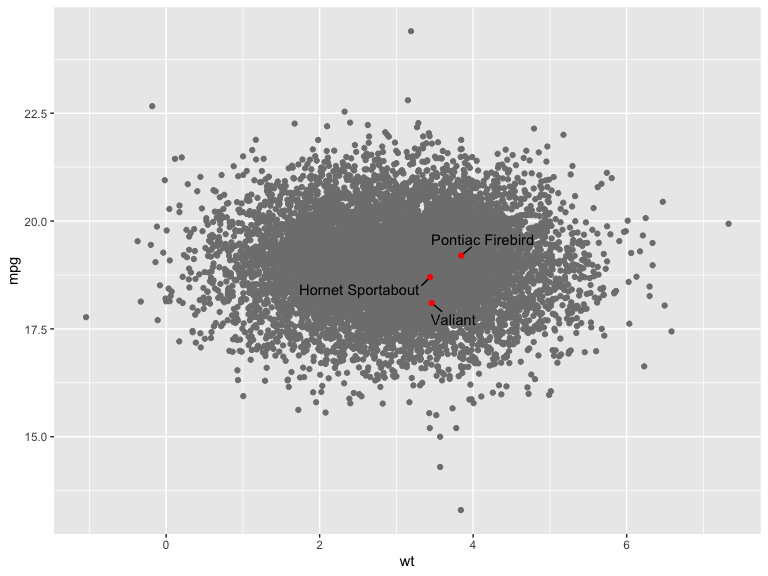

Another example
