Processing Data from Satellite Remote Sensing

Course Schedule

source

Resource Presentations

Case Study Presentations - Let’s pick a winner!

Next Week’s Case Study

source

Objectives

  • Brief introduction to remote sensing
  • Obtaining NASA remote sensing data
  • MODIS
  • MODIS data processing

Active Earth Observing Satellites (EOS) (as of 5/1/2023)

  • Total number of operating satellites: 7,560
    • United States: 5,184
    • China: 628
    • Russia: 181

From the Union of Concerned Scientists Satellite Database and Pixalytics Blog

Debris & Satellites in low Earth orbit

alt text

Image courtesy of European Space Agency

NASA’s Earth Observing System

alt text

Electromagnetic Radiation

alt text

EarthData

EarthData.nasa.gov

Datasets, news, articles, information

alt text

EarthData

EarthData.nasa.gov

Datasets, news, articles, information

alt text

Image Processing in R

Terra Package

library(terra)
# Blue
b2 <- rast('data/rs/LC08_044034_20170614_B2.tif')
# Green
b3 <- rast('data/rs/LC08_044034_20170614_B3.tif')
# Red
b4 <- rast('data/rs/LC08_044034_20170614_B4.tif')
# Near Infrared (NIR)
b5 <- rast('data/rs/LC08_044034_20170614_B5.tif')
b2
## class       : SpatRaster
## dimensions  : 1245, 1497, 1  (nrow, ncol, nlyr)
## resolution  : 30, 30  (x, y)
## extent      : 594090, 639000, 4190190, 4227540  (xmin, xmax, ymin, ymax)
## coord. ref. : WGS 84 / UTM zone 10N (EPSG:32610)
## source      : LC08_044034_20170614_B2.tif
## name        : LC08_044034_20170614_B2
## min value   :               0.0748399
## max value   :               0.7177562

Metadata

# coordinate reference system (CRS)
crs(b2)
## [1] "PROJCRS[\"WGS 84 / UTM zone 10N\",\n    BASEGEOGCRS[\"WGS 84\",\n        DATUM[\"World Geodetic System 1984\",\n            ELLIPSOID[\"WGS 84\",6378137,298.257223563,\n                LENGTHUNIT[\"metre\",1]]],\n        PRIMEM[\"Greenwich\",0,\n            ANGLEUNIT[\"degree\",0.0174532925199433]],\n        ID[\"EPSG\",4326]],\n    CONVERSION[\"UTM zone 10N\",\n        METHOD[\"Transverse Mercator\",\n            ID[\"EPSG\",9807]],\n        PARAMETER[\"Latitude of natural origin\",0,\n            ANGLEUNIT[\"degree\",0.0174532925199433],\n            ID[\"EPSG\",8801]],\n        PARAMETER[\"Longitude of natural origin\",-123,\n            ANGLEUNIT[\"degree\",0.0174532925199433],\n            ID[\"EPSG\",8802]],\n        PARAMETER[\"Scale factor at natural origin\",0.9996,\n            SCALEUNIT[\"unity\",1],\n            ID[\"EPSG\",8805]],\n        PARAMETER[\"False easting\",500000,\n            LENGTHUNIT[\"metre\",1],\n            ID[\"EPSG\",8806]],\n        PARAMETER[\"False northing\",0,\n            LENGTHUNIT[\"metre\",1],\n            ID[\"EPSG\",8807]]],\n    CS[Cartesian,2],\n        AXIS[\"(E)\",east,\n            ORDER[1],\n            LENGTHUNIT[\"metre\",1]],\n        AXIS[\"(N)\",north,\n            ORDER[2],\n            LENGTHUNIT[\"metre\",1]],\n    USAGE[\n        SCOPE[\"Engineering survey, topographic mapping.\"],\n        AREA[\"Between 126°W and 120°W, northern hemisphere between equator and 84°N, onshore and offshore. Canada - British Columbia (BC); Northwest Territories (NWT); Nunavut; Yukon. United States (USA) - Alaska (AK).\"],\n        BBOX[0,-126,84,-120]],\n    ID[\"EPSG\",32610]]"
# Number of cells, rows, columns
ncell(b2)
## [1] 1863765
dim(b2)
## [1] 1245 1497    1
# spatial resolution
res(b2)
## [1] 30 30
# Number of bands
nlyr(b2)
## [1] 1
# Do the bands have the same extent, number of rows and columns, projection, resolution, and origin
compareGeom(b2,b3)
## [1] TRUE

Check the properties of the SpatRast

s <- c(b5, b4, b3)
s
## class       : SpatRaster
## dimensions  : 1245, 1497, 3  (nrow, ncol, nlyr)
## resolution  : 30, 30  (x, y)
## extent      : 594090, 639000, 4190190, 4227540  (xmin, xmax, ymin, ymax)
## coord. ref. : WGS 84 / UTM zone 10N (EPSG:32610)
## sources     : LC08_044034_20170614_B5.tif
##               LC08_044034_20170614_B4.tif
##               LC08_044034_20170614_B3.tif
## names       : LC08_04403~0170614_B5, LC08_04403~0170614_B4, LC08_04403~0170614_B3
## min values  :          0.0008457669,            0.02084067,            0.04259216
## max values  :          1.0124315023,            0.78617686,            0.69246972

Import multiple bands

filenames <- paste0('data/rs/LC08_044034_20170614_B', 1:11, ".tif")
filenames
##  [1] "data/rs/LC08_044034_20170614_B1.tif"
##  [2] "data/rs/LC08_044034_20170614_B2.tif"
##  [3] "data/rs/LC08_044034_20170614_B3.tif"
##  [4] "data/rs/LC08_044034_20170614_B4.tif"
##  [5] "data/rs/LC08_044034_20170614_B5.tif"
##  [6] "data/rs/LC08_044034_20170614_B6.tif"
##  [7] "data/rs/LC08_044034_20170614_B7.tif"
##  [8] "data/rs/LC08_044034_20170614_B8.tif"
##  [9] "data/rs/LC08_044034_20170614_B9.tif"
## [10] "data/rs/LC08_044034_20170614_B10.tif"
## [11] "data/rs/LC08_044034_20170614_B11.tif"
landsat <- rast(filenames)
landsat
## class       : SpatRaster
## dimensions  : 1245, 1497, 11  (nrow, ncol, nlyr)
## resolution  : 30, 30  (x, y)
## extent      : 594090, 639000, 4190190, 4227540  (xmin, xmax, ymin, ymax)
## coord. ref. : WGS 84 / UTM zone 10N (EPSG:32610)
## sources     : LC08_044034_20170614_B1.tif
##               LC08_044034_20170614_B2.tif
##               LC08_044034_20170614_B3.tif
##               ... and 8 more source(s)
## names       : LC08_~14_B1, LC08_~14_B2, LC08_~14_B3, LC08_~14_B4,  LC08_~14_B5,  LC08_~14_B6, ...
## min values  :  0.09641791,   0.0748399,  0.04259216,  0.02084067, 0.0008457669, -0.007872183, ...
## max values  :  0.73462820,   0.7177562,  0.69246972,  0.78617686, 1.0124315023,  1.043204546, ...

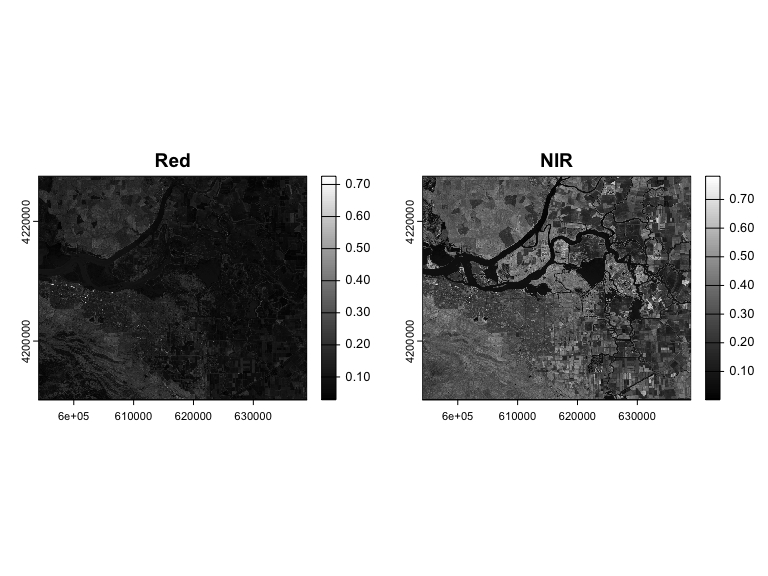

Blue, Green, Red, NIR

par(mfrow = c(1,2))
plot(b4, main = "Red", col = gray(0:100 / 100))
plot(b5, main = "NIR", col = gray(0:100 / 100))

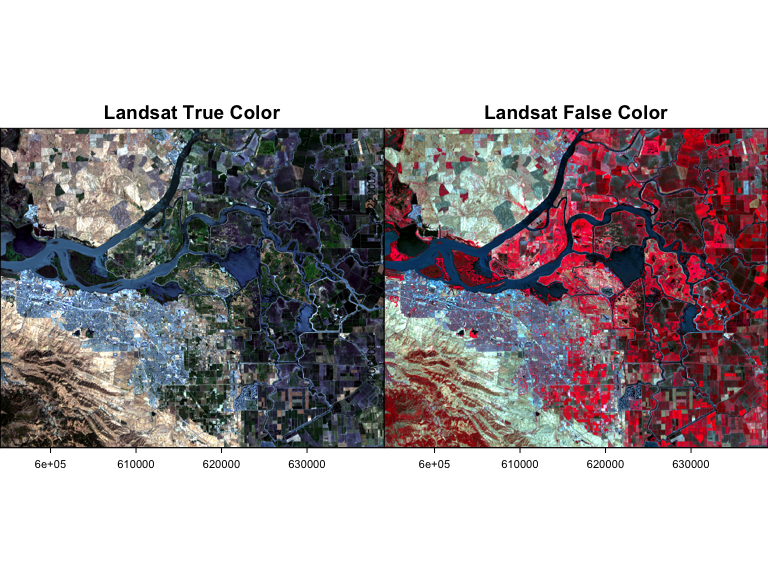

Plotting

landsatRGB <- c(b4, b3, b2)

par(mfrow = c(1,2))
plotRGB(landsatRGB, axes=TRUE, stretch="lin", main="Landsat True Color")

landsatFCC <- c(b5, b4, b3)
plotRGB(landsatFCC, axes=TRUE, stretch="lin", main="Landsat False Color")

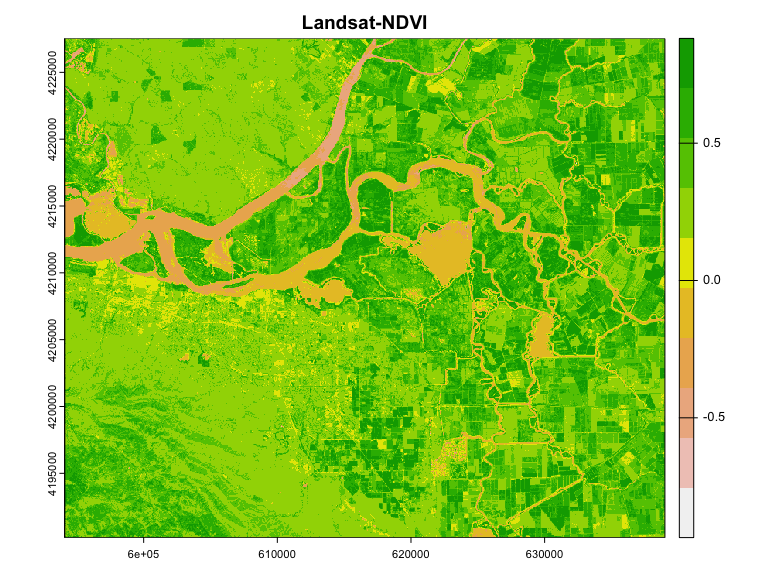

Vegetation indices

fndvi <- function(x, y) { # NDVI
    (x - y) / (x + y)
}
ndvi <- lapp(landsat[[c(5,4)]], fun=fndvi) # NIR, Red
plot(ndvi, col=rev(terrain.colors(10)), main="Landsat-NDVI")

More resources

MODIS

Moderate Resolution Imaging Spectroradiometer (MODIS)

alt text

2 Satellites Terra launched in 1999, Aqua in 2002.

Technical Details: swath

alt text

Viewing swath width of 2,330 km

Technical Details: spatial coverage

alt text

Covers Earth every one to two days

Technical Details: spectral coverage

alt text

36 spectral bands between 0.405 and 14.385 µm

Technical Details: spatial resolution

alt text

3 spatial resolutions – 250m, 500m, and 1,000m

MODIS Data Processing

  • Tracking and Data Relay Satellite System in White Sands, New Mexico
  • EOS Data and Operations System @ Goddard Space Flight Center in Greenbelt, MD
  • MODIS Adaptive Processing System (MODAPS)
  • 3 DAACs for distribution

MODIS products (a subset…)

Atmosphere

  • Aerosol & Clouds
  • Total Precipitable Water

Cryosphere Products

  • Snow Cover
  • Sea Ice and Ice Surface Temperature

Ocean Products

  • Sea Surface Temperature
  • Sub-surface Chlorophyll-a Concentration
  • Particulate Carbon
  • Photosynthetically Available Radiation

Land Products

  • Surface Reflectance
  • Land Surface Temperature and Emissivity
  • Land Cover Products
  • Vegetation Index Products (NDVI and EVI)
  • Thermal Anomalies - Active Fires
  • Photosynthetically Active Radiation (FPAR) / Leaf Area Index (LAI)
  • Evapotranspiration
  • Primary Productivity
  • Vegetation Continuous Fields
  • Water Mask
  • Burned Area Product

Example product workflow

alt text

MODIS Products used to generate vegetation indices. From the MOD13 Algorithm Theoretical Basis Document.

Data

Data formats

Most NASA EOS data distributed as HDF files, which are very similar to netCDF.

alt text

NetCDF / HDF

alt text

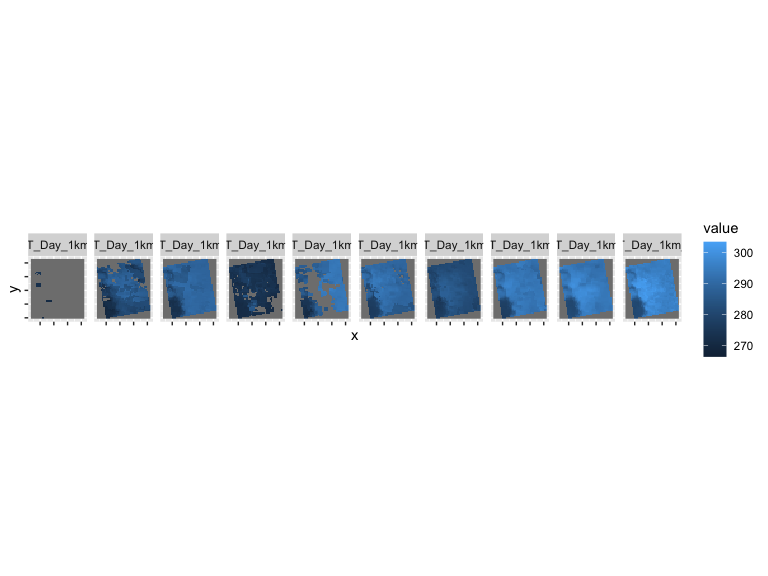

Reading EO Data

terra package functions can read NetCDF/HDF files if ncdf4 package is installed.

ncfile="data/MOD11A2.006_aid0001.nc"
nc=ncdf4::nc_open(ncfile,verbose = F)
str(nc$var)
## List of 3
##  $ crs        :List of 20
##   ..$ id                :List of 5
##   .. ..$ id         : num 0
##   .. ..$ group_index: num -1
##   .. ..$ group_id   : int 65536
##   .. ..$ list_index : num 1
##   .. ..$ isdimvar   : logi FALSE
##   .. ..- attr(*, "class")= chr "ncid4"
##   ..$ name              : chr "crs"
##   ..$ ndims             : int 0
##   ..$ natts             : int 10
##   ..$ size              : num 1
##   ..$ dimids            : int NA
##   ..$ prec              : chr "byte"
##   ..$ units             : chr ""
##   ..$ longname          : chr "crs"
##   ..$ group_index       : int 1
##   ..$ chunksizes        : int NA
##   ..$ storage           : int 1
##   ..$ shuffle           : int 0
##   ..$ compression       : logi NA
##   ..$ dims              : list()
##   ..$ unlim             : logi FALSE
##   ..$ make_missing_value: logi FALSE
##   ..$ missval           : logi NA
##   ..$ hasAddOffset      : logi FALSE
##   ..$ hasScaleFact      : logi FALSE
##   ..- attr(*, "class")= chr "ncvar4"
##  $ LST_Day_1km:List of 24
##   ..$ id                :List of 5
##   .. ..$ id         : num 4
##   .. ..$ group_index: num -1
##   .. ..$ group_id   : int 65536
##   .. ..$ list_index : num 2
##   .. ..$ isdimvar   : logi FALSE
##   .. ..- attr(*, "class")= chr "ncid4"
##   ..$ name              : chr "LST_Day_1km"
##   ..$ ndims             : int 3
##   ..$ natts             : int 14
##   ..$ size              : int [1:3] 42 47 811
##   ..$ dimids            : int [1:3] 2 1 0
##   ..$ prec              : chr "int"
##   ..$ units             : chr "K"
##   ..$ longname          : chr "8-day daytime 1km grid Land-surface Temperature"
##   ..$ group_index       : int 1
##   ..$ chunksizes        : int [1:3] 21 24 406
##   ..$ storage           : int 2
##   ..$ shuffle           : int 1
##   ..$ compression       : int 4
##   ..$ dims              : list()
##   ..$ dim               :List of 3
##   .. ..$ :List of 10
##   .. .. ..$ name         : chr "xdim"
##   .. .. ..$ len          : int 42
##   .. .. ..$ unlim        : logi FALSE
##   .. .. ..$ group_index  : int 1
##   .. .. ..$ group_id     : int 65536
##   .. .. ..$ id           : int 2
##   .. .. ..$ dimvarid     :List of 5
##   .. .. .. ..$ id         : int 3
##   .. .. .. ..$ group_index: int 1
##   .. .. .. ..$ group_id   : int 65536
##   .. .. .. ..$ list_index : num -1
##   .. .. .. ..$ isdimvar   : logi TRUE
##   .. .. .. ..- attr(*, "class")= chr "ncid4"
##   .. .. ..$ units        : chr "m"
##   .. .. ..$ vals         : num [1:42(1d)] 1373722 1374649 1375575 1376502 1377429 ...
##   .. .. ..$ create_dimvar: logi TRUE
##   .. .. ..- attr(*, "class")= chr "ncdim4"
##   .. ..$ :List of 10
##   .. .. ..$ name         : chr "ydim"
##   .. .. ..$ len          : int 47
##   .. .. ..$ unlim        : logi FALSE
##   .. .. ..$ group_index  : int 1
##   .. .. ..$ group_id     : int 65536
##   .. .. ..$ id           : int 1
##   .. .. ..$ dimvarid     :List of 5
##   .. .. .. ..$ id         : int 2
##   .. .. .. ..$ group_index: int 1
##   .. .. .. ..$ group_id   : int 65536
##   .. .. .. ..$ list_index : num -1
##   .. .. .. ..$ isdimvar   : logi TRUE
##   .. .. .. ..- attr(*, "class")= chr "ncid4"
##   .. .. ..$ units        : chr "m"
##   .. .. ..$ vals         : num [1:47(1d)] 2362432 2361505 2360578 2359652 2358725 ...
##   .. .. ..$ create_dimvar: logi TRUE
##   .. .. ..- attr(*, "class")= chr "ncdim4"
##   .. ..$ :List of 11
##   .. .. ..$ name         : chr "time"
##   .. .. ..$ len          : int 811
##   .. .. ..$ unlim        : logi FALSE
##   .. .. ..$ group_index  : int 1
##   .. .. ..$ group_id     : int 65536
##   .. .. ..$ id           : int 0
##   .. .. ..$ dimvarid     :List of 5
##   .. .. .. ..$ id         : int 1
##   .. .. .. ..$ group_index: int 1
##   .. .. .. ..$ group_id   : int 65536
##   .. .. .. ..$ list_index : num -1
##   .. .. .. ..$ isdimvar   : logi TRUE
##   .. .. .. ..- attr(*, "class")= chr "ncid4"
##   .. .. ..$ units        : chr "days since 2000-01-01 00:00:00"
##   .. .. ..$ calendar     : chr "julian"
##   .. .. ..$ vals         : int [1:811(1d)] 48 56 64 72 80 88 96 104 112 120 ...
##   .. .. ..$ create_dimvar: logi TRUE
##   .. .. ..- attr(*, "class")= chr "ncdim4"
##   ..$ varsize           : int [1:3] 42 47 811
##   ..$ unlim             : logi FALSE
##   ..$ make_missing_value: logi TRUE
##   ..$ missval           : int 0
##   ..$ hasAddOffset      : logi TRUE
##   ..$ addOffset         : num 0
##   ..$ hasScaleFact      : logi TRUE
##   ..$ scaleFact         : num 0.02
##   ..- attr(*, "class")= chr "ncvar4"
##  $ QC_Day     :List of 22
##   ..$ id                :List of 5
##   .. ..$ id         : num 5
##   .. ..$ group_index: num -1
##   .. ..$ group_id   : int 65536
##   .. ..$ list_index : num 3
##   .. ..$ isdimvar   : logi FALSE
##   .. ..- attr(*, "class")= chr "ncid4"
##   ..$ name              : chr "QC_Day"
##   ..$ ndims             : int 3
##   ..$ natts             : int 7
##   ..$ size              : int [1:3] 42 47 811
##   ..$ dimids            : int [1:3] 2 1 0
##   ..$ prec              : chr "short"
##   ..$ units             : chr ""
##   ..$ longname          : chr "Quality control for daytime LST and emissivity"
##   ..$ group_index       : int 1
##   ..$ chunksizes        : int [1:3] 42 47 811
##   ..$ storage           : int 2
##   ..$ shuffle           : int 1
##   ..$ compression       : int 4
##   ..$ dims              : list()
##   ..$ dim               :List of 3
##   .. ..$ :List of 10
##   .. .. ..$ name         : chr "xdim"
##   .. .. ..$ len          : int 42
##   .. .. ..$ unlim        : logi FALSE
##   .. .. ..$ group_index  : int 1
##   .. .. ..$ group_id     : int 65536
##   .. .. ..$ id           : int 2
##   .. .. ..$ dimvarid     :List of 5
##   .. .. .. ..$ id         : int 3
##   .. .. .. ..$ group_index: int 1
##   .. .. .. ..$ group_id   : int 65536
##   .. .. .. ..$ list_index : num -1
##   .. .. .. ..$ isdimvar   : logi TRUE
##   .. .. .. ..- attr(*, "class")= chr "ncid4"
##   .. .. ..$ units        : chr "m"
##   .. .. ..$ vals         : num [1:42(1d)] 1373722 1374649 1375575 1376502 1377429 ...
##   .. .. ..$ create_dimvar: logi TRUE
##   .. .. ..- attr(*, "class")= chr "ncdim4"
##   .. ..$ :List of 10
##   .. .. ..$ name         : chr "ydim"
##   .. .. ..$ len          : int 47
##   .. .. ..$ unlim        : logi FALSE
##   .. .. ..$ group_index  : int 1
##   .. .. ..$ group_id     : int 65536
##   .. .. ..$ id           : int 1
##   .. .. ..$ dimvarid     :List of 5
##   .. .. .. ..$ id         : int 2
##   .. .. .. ..$ group_index: int 1
##   .. .. .. ..$ group_id   : int 65536
##   .. .. .. ..$ list_index : num -1
##   .. .. .. ..$ isdimvar   : logi TRUE
##   .. .. .. ..- attr(*, "class")= chr "ncid4"
##   .. .. ..$ units        : chr "m"
##   .. .. ..$ vals         : num [1:47(1d)] 2362432 2361505 2360578 2359652 2358725 ...
##   .. .. ..$ create_dimvar: logi TRUE
##   .. .. ..- attr(*, "class")= chr "ncdim4"
##   .. ..$ :List of 11
##   .. .. ..$ name         : chr "time"
##   .. .. ..$ len          : int 811
##   .. .. ..$ unlim        : logi FALSE
##   .. .. ..$ group_index  : int 1
##   .. .. ..$ group_id     : int 65536
##   .. .. ..$ id           : int 0
##   .. .. ..$ dimvarid     :List of 5
##   .. .. .. ..$ id         : int 1
##   .. .. .. ..$ group_index: int 1
##   .. .. .. ..$ group_id   : int 65536
##   .. .. .. ..$ list_index : num -1
##   .. .. .. ..$ isdimvar   : logi TRUE
##   .. .. .. ..- attr(*, "class")= chr "ncid4"
##   .. .. ..$ units        : chr "days since 2000-01-01 00:00:00"
##   .. .. ..$ calendar     : chr "julian"
##   .. .. ..$ vals         : int [1:811(1d)] 48 56 64 72 80 88 96 104 112 120 ...
##   .. .. ..$ create_dimvar: logi TRUE
##   .. .. ..- attr(*, "class")= chr "ncdim4"
##   ..$ varsize           : int [1:3] 42 47 811
##   ..$ unlim             : logi FALSE
##   ..$ make_missing_value: logi TRUE
##   ..$ missval           : int 0
##   ..$ hasAddOffset      : logi FALSE
##   ..$ hasScaleFact      : logi FALSE
##   ..- attr(*, "class")= chr "ncvar4"

Read NetCDF with rast()

lst=rast(ncfile,subds="LST_Day_1km")
lst
## class       : SpatRaster
## dimensions  : 47, 42, 811  (nrow, ncol, nlyr)
## resolution  : 926.6254, 926.6254  (x, y)
## extent      : 1373259, 1412177, 2319343, 2362895  (xmin, xmax, ymin, ymax)
## coord. ref. : +proj=aea +lat_0=23 +lon_0=-96 +lat_1=29.5 +lat_2=45.5 +x_0=0 +y_0=0 +datum=WGS84 +units=m +no_defs
## source      : MOD11A2.006_aid0001.nc:LST_Day_1km
## varname     : LST_Day_1km (8-day daytime 1km grid Land-surface Temperature)
## names       : LST_D~1km_1, LST_D~1km_2, LST_D~1km_3, LST_D~1km_4, LST_D~1km_5, LST_D~1km_6, ...
## unit        :           K,           K,           K,           K,           K,           K, ...
## time (days) : 2000-02-18 to 2017-10-16

Plot Raster Stack

lst[[1:10]] %>% gplot()+
    geom_raster(aes(fill=value))+
    facet_wrap(~variable,nrow=1)+
    coord_equal()+
    theme(axis.text=element_blank())

Collection-Level Naming Conventsions

MODIS/Terra Surface Reflectance 8-Day L3 Global 500m SIN Grid V005

  • MODIS/Terra - Instrument/Sensor
  • Surface Reflectance - Geophysical Parameter
  • 8-Day - Temporal Resolution
  • L3 - Processing Level
  • Global - Global or Swath
  • 500m - Spatial Resolution
  • SIN Grid - Gridded or Not
  • V005 - Collection Version

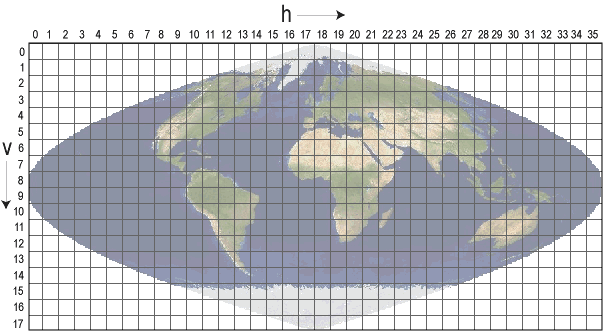

MODIS Gridding system

Filename Conventions

MOD09A1.A2006001.h08v05.005.2006012234657.hdf

  • MOD09A1 - Product Short Name
  • .A2006001 - Julian Date of Acquisition (A-YYYYDDD)
  • .h08v05 - Tile Identifier (horizontalXXverticalYY)
  • .005 - Collection Version
  • .2006012234567 - Julian Date of Production (YYYYDDDHHMMSS)
  • .hdf - Data Format (HDF-EOS)

MODIS Temporal Resolution

  • Daily
  • 8-Day
  • 16-Day
  • Monthly
  • Quarterly
  • Yearly

MODIS Spatial Resolution

  • Bands 1–2 250-meter
  • Bands 3–7 500-meter
  • Bands 8–36 1000-meter

MODIS Data

Distributed Active Archive Centers (DAACs)

Accessing data

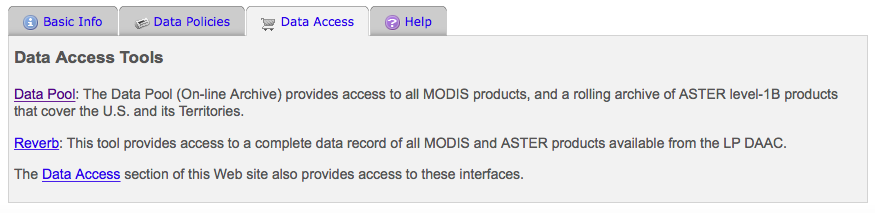

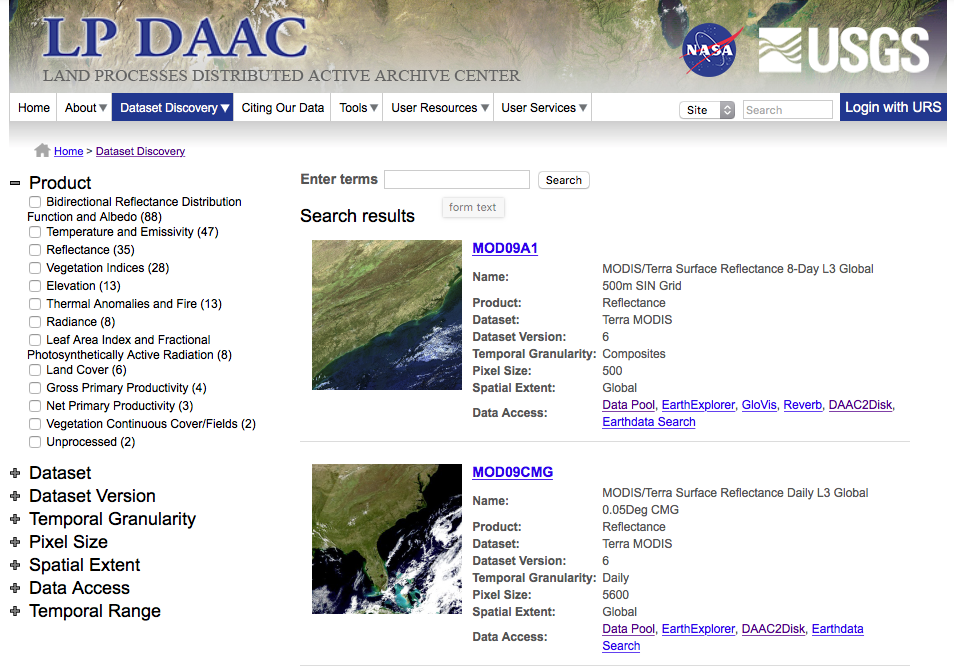

The Land Processes Distributed Active Archive Center has a nice “Data Discovery” Tool:

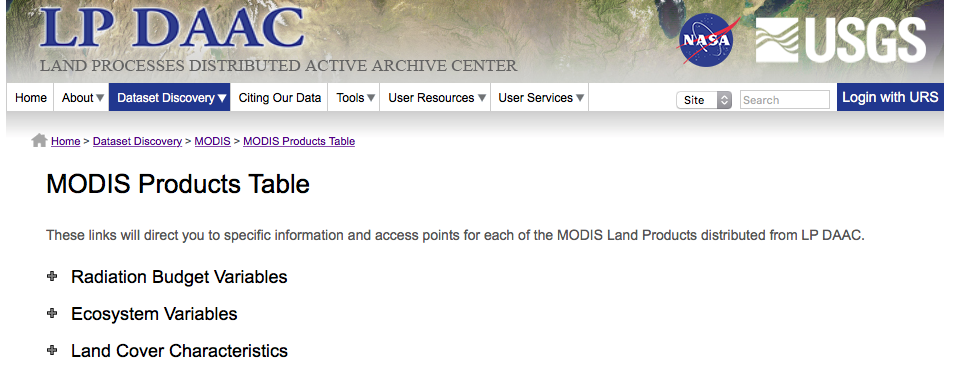

MODIS Products Table

Lists all available MODIS land products

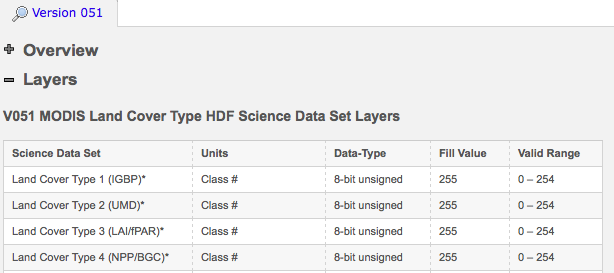

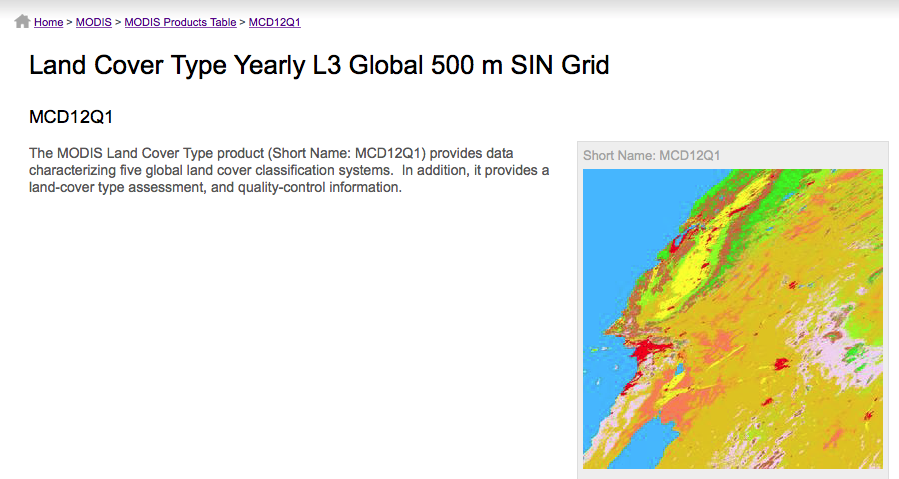

Annual Land Cover Type Description

Detailed layer information

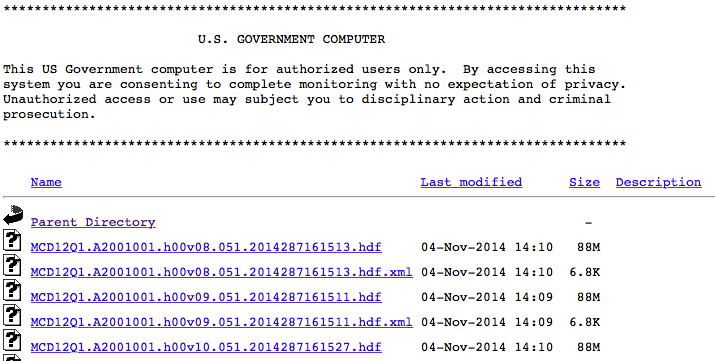

or the LP DAAC2Disk Download Manager which builds a download script.

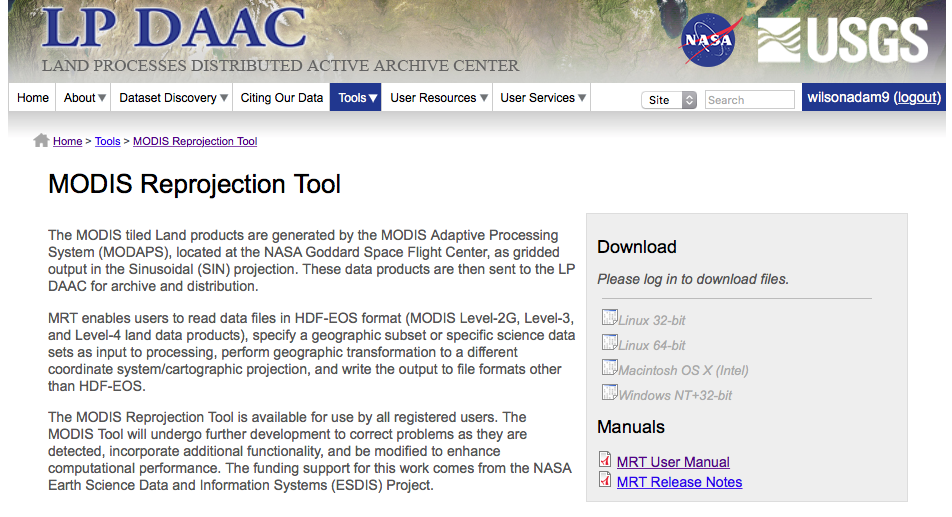

MODIS Reprojection Tool

Available at lpdaac.usgs.gov/tools/modis_reprojection_tool.

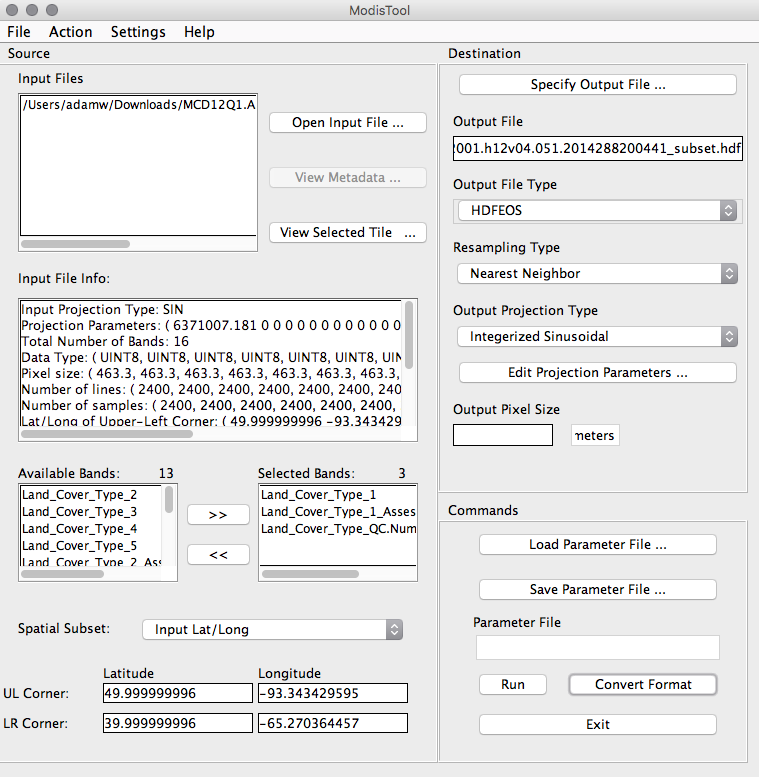

MODIS Reprojection Tool: Subset & Reproject

MCD12Q1.A2012001.h12v04.051.2014288200441.hdf

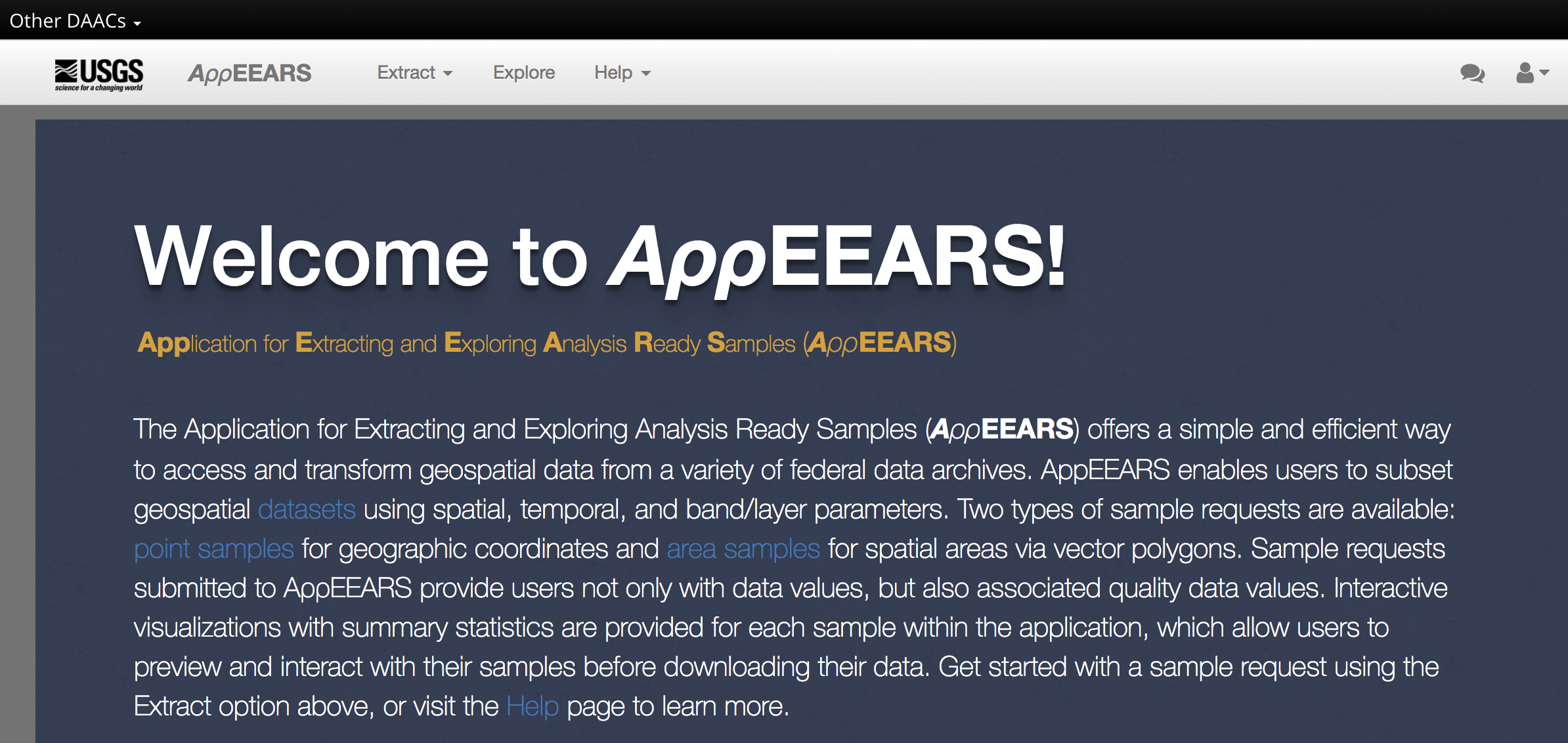

Application for Extracting and Exploring Analysis Ready Samples (AppEEARS)

https://lpdaacsvc.cr.usgs.gov/appeears/

  • Provide access to regional subsets
  • Merge across tiles
  • Download full time series

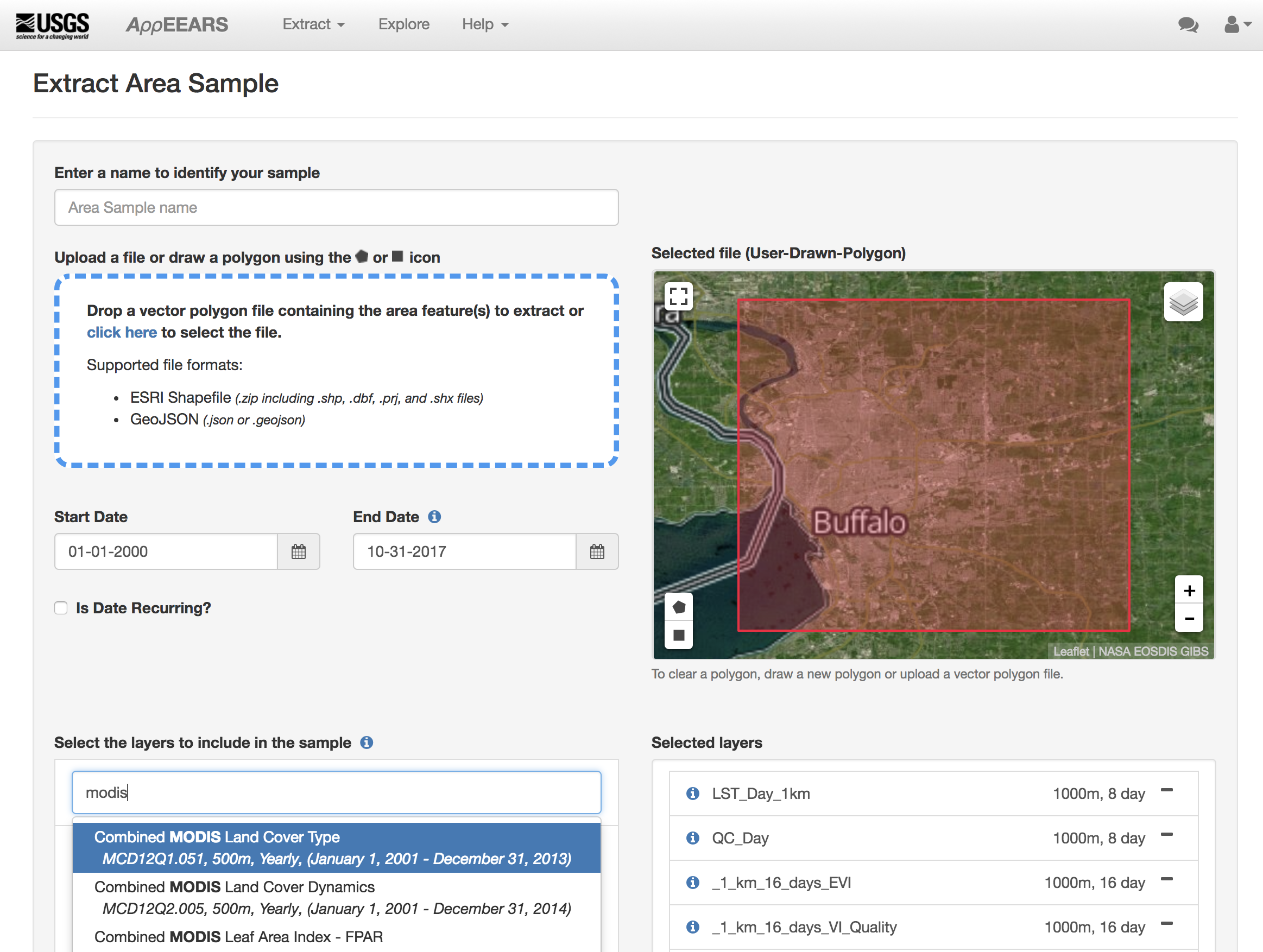

Data Subset

Submit and wait for results…

Case Study

Analysis of Land Use Land Cover and Land Surface Temperature across Buffalo using MODIS timeseries.

Presentation Credits

  • Images: NASA
  • Some contents from Steve Ackerman stevea@ssec.wisc.edu, Cooperative Institute for Meteorological Satellite Studies, University of Wisconsin-Madison
